Traffic Flow Mapping tool

Last updated:

Dec 2018


If your are using any of the material below please cite the corresponding publication:


TFM (Traffic Flow Mapping) is a prototype tool for online visualization of traffic based on representation learning. It uses semi-supervised Autoencoders for obtaining two-dimensional representations of network traffic flows, and plots them, together with some indicators about the flows.

Software, scripts, tools:

All software can be found in GitHub.

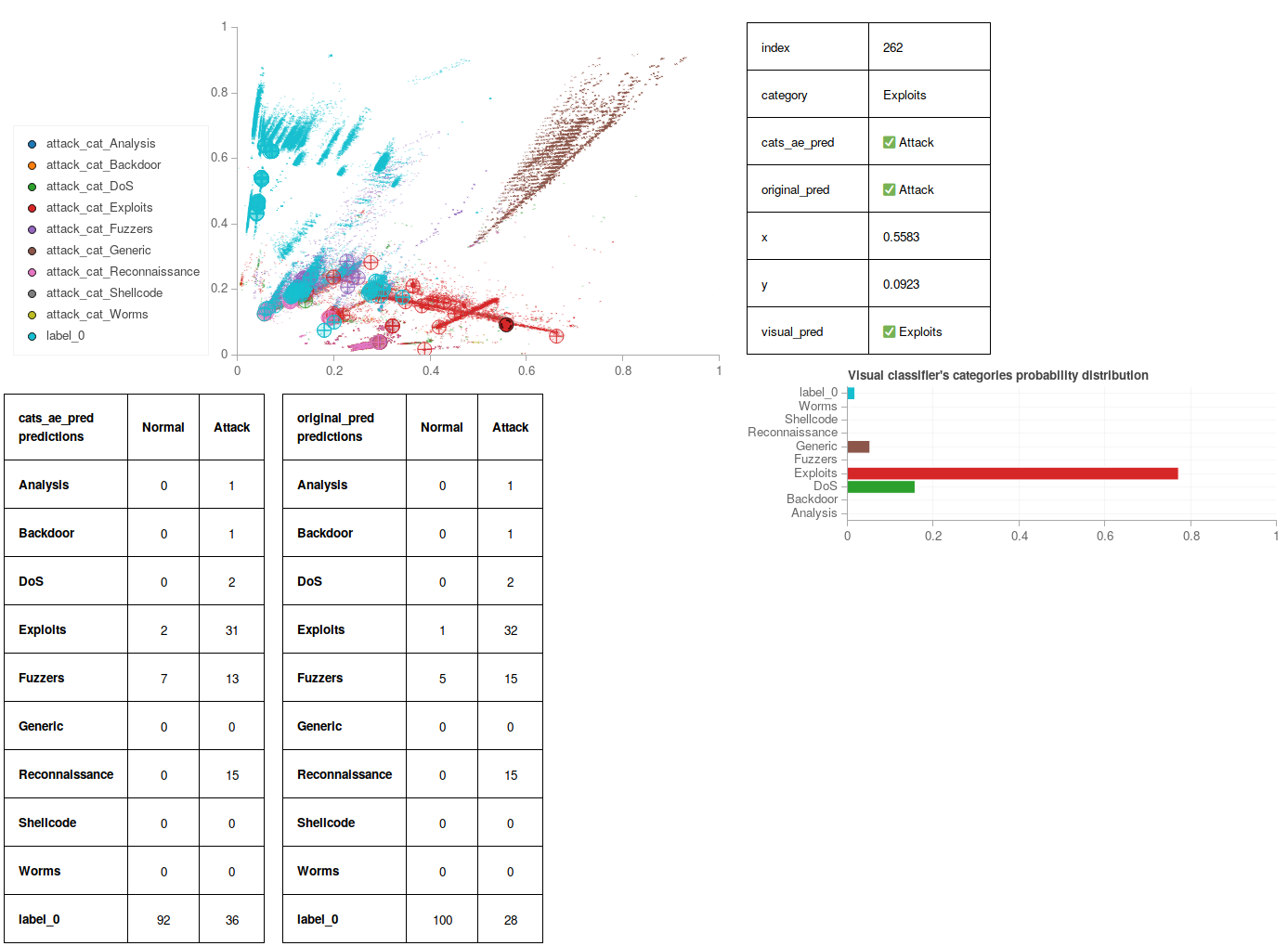

Example Figure: (click to enlarge)
